The Ultimate Guide to Spade Connectors: What Are They and Why Do You Need Them?

Spade connectors, often overlooked in the vast world of electronic components, serve as a fundamental element in establishing secure, reliable electrical connections. These versatile connectors are used extensively across various applications, from automotive to audio systems. This comprehensive guide delves into the world of spade connectors, highlighting their importance, functionality, and comparisons with bullet and splice connectors.

Understanding Spade Connectors: A Deep Dive

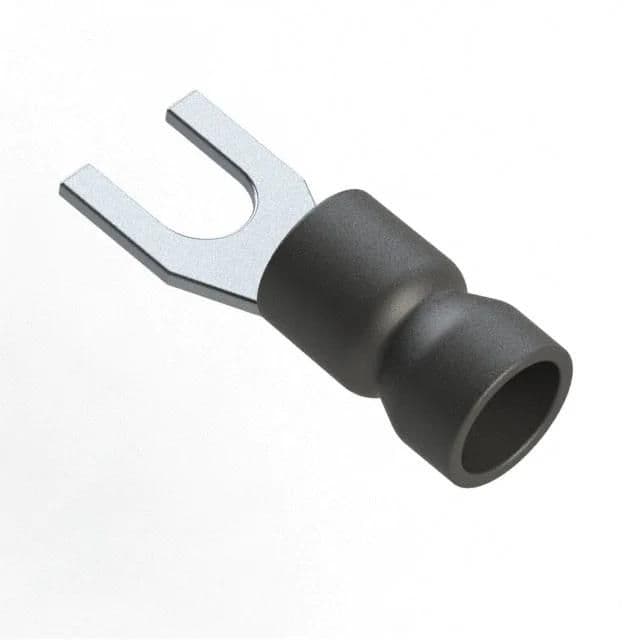

Spade connectors are named for their distinctive spade-like shape, which allows them to be easily attached and removed from screw terminals and mating parts. This feature makes them particularly useful for applications where connections are frequently changed or inspected.

Key Features:

Ease of Installation: Spade connectors are straightforward to install, requiring only an essential crimping tool to secure the wire to the connector.
Versatility: Available in various sizes and materials to suit different wire gauges and voltage requirements.
Durability: Designed to withstand vibration, temperature changes, and repeated use without loss of electrical integrity.

Advantages Over Other Connectors:

Quick Disconnect Capability: Unlike permanent connection solutions, spade connectors provide the flexibility of quick disconnection for repairs and replacements.
Visual Inspection: The open design allows for easy inspection of wire insertion and termination integrity.

Choosing the Right Spade Connector

Selecting the appropriate spade connector involves considering several factors to ensure optimal performance and safety:

Material: Copper, brass, and other conductive materials are common, with some featuring tin or gold plating to enhance conductivity and resist corrosion.
Wire Gauge Compatibility: It is crucial to match the connector with the wire gauge to ensure a secure fit and reliable connection.
Insulation: Insulated spade connectors offer additional safety features, preventing accidental shorts and protecting the connection from environmental factors.

Installation Tips for Spade Connectors

Proper installation is vital for maximising the effectiveness of spade connectors. Here are some practical tips for ensuring a robust connection:

Strip the Wire Correctly: Remove just enough insulation to fit into the connector without leaving exposed wire beyond the connector.
Crimp Securely: Use a crimping tool that matches the connector size for a tight fit that prevents the wire from pulling out.
Tug Test: After crimping, gently pull the wire to ensure it is securely attached to the connector.

Comparison with Bullet and Splice Connectors

While spade connectors are ideal for many scenarios, bullet and splice connectors also play critical roles in electrical wiring. Understanding their unique attributes can help determine the best connector for a particular application.

Bullet Connectors:

Design: Feature a round, tubular shape that allows a male and female connector to join end-to-end.
Applications: Commonly used in automotive and consumer electronics where space is limited, and connections must be robust.

Splice Connectors:

Purpose: Designed to join two or more wires together in a line, making them essential for wire harnesses and multi-wire junctions.
Installation: Typically involves inserting wires into a metal sleeve and crimping or soldering them together.

Common Applications of Spade Connectors

Spade connectors are ubiquitous in both commercial and residential settings. Here are some common uses:

Automotive: Connecting wires to switches, relays, and other components within vehicles.
Home Audio Systems: Making quick and secure connections to speakers and audio components.
Industrial Machinery: Facilitating easy maintenance and repair by providing a reliable means of connecting controls and wiring.

Best Practices for Maintenance and Safety

To ensure longevity and safety in using spade connectors, follow these best practices:

Regular Inspection: Check connections periodically for signs of wear, corrosion, or loosening.
Proper Storage: Keep connectors in a dry, cool place to prevent premature ageing or damage.
Use the Right Tools: Always use the correct size and type of crimping tool and wire stripper to avoid damaging the connectors or wires.

Conclusion

Spade connectors, with their easy installation, durability, and versatility, are an essential component in the toolkit of any electrical technician or DIY enthusiast. By choosing the right type, installing it correctly, and performing regular maintenance, you can ensure reliable and efficient electrical connections. Whether you're working on a simple home project or a complex industrial application, understanding and utilising spade connectors effectively can lead to significant benefits in safety and functionality.

This guide to spade connectors not only enhances your understanding but also equips you with the knowledge to use these connectors to their fullest potential alongside their counterparts like bullet and splice connectors. Remember, the proper connection can make all the difference in the performance and reliability of your electrical systems.
