Simple Harmonic Motion (Shm)

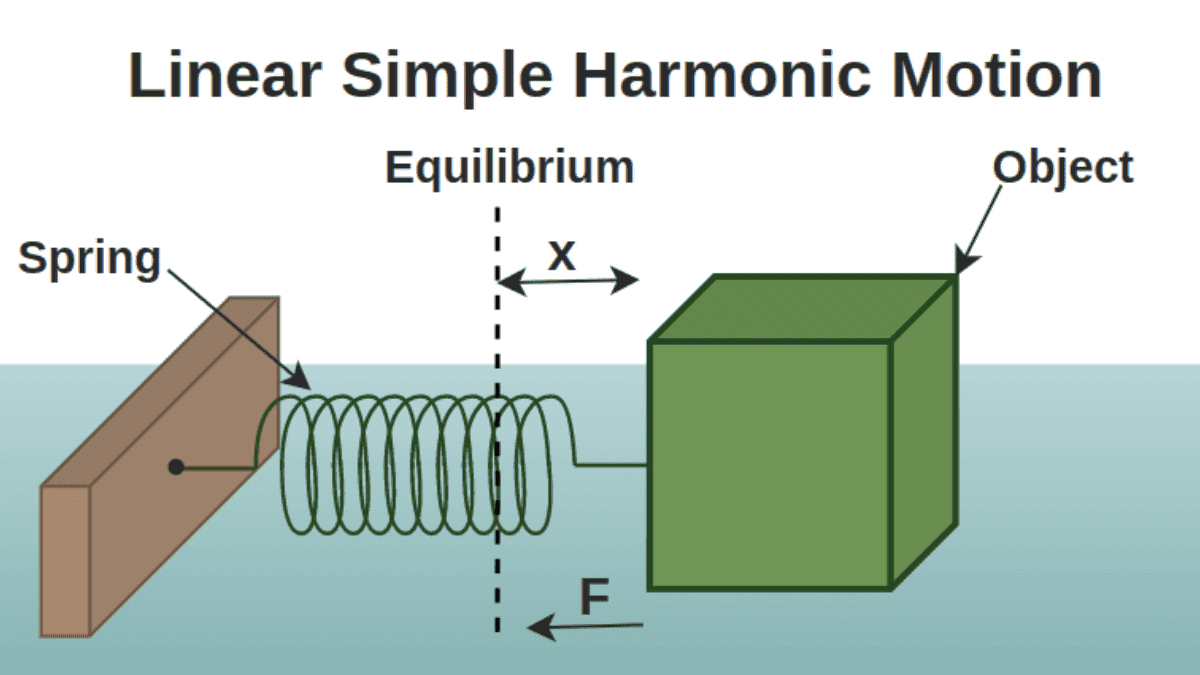

show the simple harmonic motion
show the simple harmonic motion

(SHM) is a repeating back-and-forth motion that many things in our world exhibit. Imagine a pendulum swinging back and forth, a mass attached to a spring bouncing up and down, or even the vibration of a guitar string. These are all examples of simple harmonic motion.

Key Elements of SHM:

  1. Restoring Force: SHM happens because there's a force that tries to bring an object back to its "rest" or equilibrium position. For a pendulum, gravity provides this force. For a spring, it's the spring's tendency to return to its natural length.

  2. Acceleration and Displacement: When you move an object away from its rest position, it experiences acceleration that tries to bring it back. The farther you move it, the stronger the force trying to return it.

  3. Repetition: SHM is repetitive. The object moves back and forth, and it takes the same amount of time to complete one full cycle each time.

The Simple Harmonic Motion Formula:

There's a simple equation that describes SHM:

F=−kx

Here's what it means:

  • F: This is the force trying to bring the object back to its equilibrium position.

  • k: It's called the spring constant or stiffness, and it tells you how strong the restoring force is. A bigger k means a stronger force.

  • x: This is the displacement, or how far you've moved the object from its rest position.

The negative sign indicates that the force is in the opposite direction of the displacement. In other words, if you pull the object to the right, the force will be to the left, trying to bring it back to the left.

Characteristics of SHM:

  1. Amplitude: This is the maximum distance the object travels from its rest position. It's like the "swing" of a pendulum or how far a spring stretches or compresses.

  2. Period: The time it takes for one complete cycle of motion (going back and forth once). It's symbolized as T.

  3. Frequency: The number of cycles per second. It's the reciprocal of the period, which means Frequency=1/T

  4. Phase: SHM has a phase, which describes where the object is in its motion at a given time. Imagine a clock hand, and you're noting its position. That's the phase.

Examples of SHM:

  1. Pendulum: When you swing a pendulum, it moves back and forth in a predictable way. The time it takes for one swing is its period.

  2. Spring-Mass System: If you hang a mass on a spring and pull it down, it will bounce up and down in SHM. The period and amplitude of this motion depend on the spring stiffness and the mass.

  3. Vibrating Guitar String: When you pluck a guitar string, it vibrates in SHM, producing different musical notes. The tighter the string, the higher the frequency and pitch.

  4. Bobbing on Water: If you've ever watched a buoy or a cork bobbing on the water, it moves up and down in SHM, driven by waves.
