Coaxial Connectors: The Backbone of Reliable Signal Transmission

Coaxial Connectors: The Backbone of Reliable Signal Transmission"

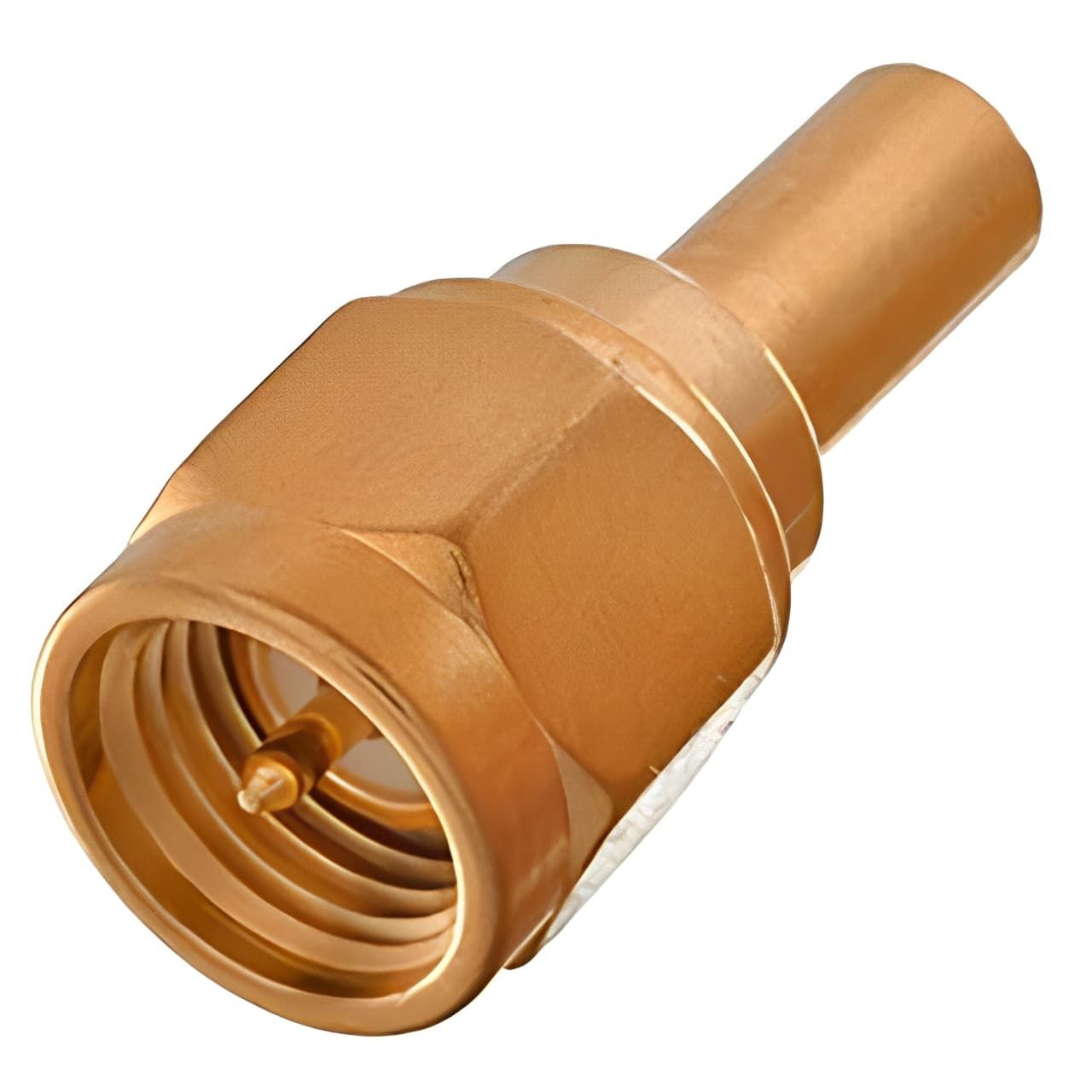

Introduction

Coaxial connectors play a crucial role in modern communication, serving as essential components in the transmission of high-frequency electrical signals. These connectors are widely used in telecommunications, broadcasting, networking, and military applications due to their efficiency in maintaining signal integrity. Whether in-home cable connections or sophisticated radar systems, coaxial connectors ensure seamless data transmission with minimal interference. This article explores the fundamentals, types, applications, and key selection factors of coaxial connectors to provide a comprehensive understanding of their significance.

What Are Coaxial Connectors?

Coaxial connectors, also known as RF connectors, are electrical connectors designed to work with coaxial cables. These connectors help transmit radio frequency (RF) signals with minimal signal loss and interference. Their design comprises an inner conductor, an insulating dielectric, a shielding layer, and an outer shell, ensuring that signals are transmitted efficiently while being shielded from external electromagnetic interference (EMI).

Coaxial connectors are engineered to provide a secure connection with minimal signal reflection, making them indispensable in applications that require high fidelity and precision. They are often rated by their impedance (typically 50 or 75 ohms), frequency range, and power-handling capabilities.

Types of Coaxial Connectors

Several types of coaxial connectors are available, each designed for specific applications and performance requirements. Below are some of the most common types:

1. BNC (Bayonet Neill-Concelman) Connectors

BNC connectors are widely used in video, radio, and networking applications. These connectors feature a quick-connect/disconnect mechanism, making them suitable for applications requiring frequent reconnections. BNC connectors support both 50-ohm and 75-ohm impedance ratings, making them versatile for different RF applications.

2. SMA (SubMiniature version A) Connectors

SMA connectors are high-frequency connectors used in wireless communication, microwave systems, and RF testing. They have a threaded interface that ensures a secure and stable connection, providing excellent performance in applications requiring precision and reliability.

3. N-Type Connectors

N-Type connectors are robust RF connectors designed for high-power applications. They offer excellent performance at frequencies up to 11 GHz, making them ideal for military, aerospace, and telecommunications applications. Their threaded design ensures strong resistance to vibrations and environmental factors.

4. TNC (Threaded Neill-Concelman) Connectors

TNC connectors are similar to BNC connectors but feature a threaded interface, providing better performance at higher frequencies. They are commonly used in radio communications and wireless applications where durability and signal stability are critical.

5. F-Type Connectors

F-type connectors are primarily used in cable television (CATV) and satellite TV applications. They are cost-effective and designed for 75-ohm coaxial cables, providing a stable connection for video and broadband internet services.

6. MCX & MMCX Connectors

MCX (Micro Coaxial) and MMCX (Micro-Miniature Coaxial) connectors are compact connectors used in applications where space is limited, such as GPS devices, wireless communication modules, and medical equipment. They provide reliable connectivity with minimal insertion loss.

Applications of Coaxial Connectors

Coaxial connectors find applications in numerous industries due to their ability to transmit high-frequency signals efficiently. Some of their primary applications include:

1. Telecommunications

Coaxial connectors are extensively used in telecommunication networks for signal transmission in radio base stations, antennas, and cellular networks. They help maintain signal integrity while reducing transmission losses.

2. Broadcasting & Media

The broadcasting industry relies on coaxial connectors for transmitting high-quality audio and video signals. They are used in television studios, satellite communications, and digital broadcasting to ensure superior signal clarity.

3. Networking & Internet Infrastructure

Coaxial connectors play a key role in internet infrastructure, connecting modems, routers, and network switches. They provide reliable broadband connections, ensuring seamless data transmission for homes and businesses.

4. Military & Aerospace

In military and aerospace applications, coaxial connectors are used in radar systems, electronic warfare, and secure communication networks. Their robust design and resistance to harsh environmental conditions make them ideal for critical defence applications.

5. Medical Equipment

Medical imaging systems, such as MRI and ultrasound machines, use coaxial connectors to transmit signals with precision. These connectors help maintain signal integrity, ensuring accurate diagnostics and imaging.

6. Automotive & Transportation

Modern vehicles use coaxial connectors in navigation systems, GPS modules, and infotainment systems. They enable efficient communication between different electronic components, enhancing the overall performance of automotive electronics.

Factors to Consider When Choosing Coaxial Connectors

Selecting the right coaxial connector depends on several factors to ensure optimal performance for a given application. Here are some key considerations:

1. Impedance Matching

Matching the impedance of the connector with the cable and system (typically 50 or 75 ohms) is crucial to minimize signal loss and reflections. Mismatched impedance can lead to significant signal degradation.

2. Frequency Range

The operating frequency of the application determines the type of connector required. High-frequency applications demand connectors with superior shielding and low insertion loss.

3. Power Handling Capacity

For applications involving high-power transmissions, such as RF amplifiers and antennas, selecting a connector with adequate power-handling capability is essential to prevent overheating and signal distortion.

4. Environmental Conditions

If the application involves exposure to extreme temperatures, moisture, or vibrations, selecting ruggedized connectors with weatherproof and corrosion-resistant properties is crucial.

5. Connector Size & Form Factor

Compact and lightweight connectors are necessary for applications with space constraints, such as medical devices and portable communication equipment. Ensuring the correct

Size without compromising performance is essential.

6. Ease of Installation & Maintenance

Quick-connect options like BNC connectors are ideal for applications requiring frequent connections and disconnections. Threaded connectors like N-Type and SMA offer better durability but require more effort to install.

Conclusion

Coaxial connectors are essential components in modern communication and electronic systems, ensuring efficient and reliable signal transmission. From telecommunications and broadcasting to military and medical applications, these connectors play a vital role in maintaining signal integrity across various industries. Understanding the different types of coaxial connectors, their applications, and key selection factors allows users to make informed decisions when choosing the correct connector for their specific needs. As technology advances, the demand for high-performance coaxial connectors will continue to grow, making them a cornerstone of future communication networks.
